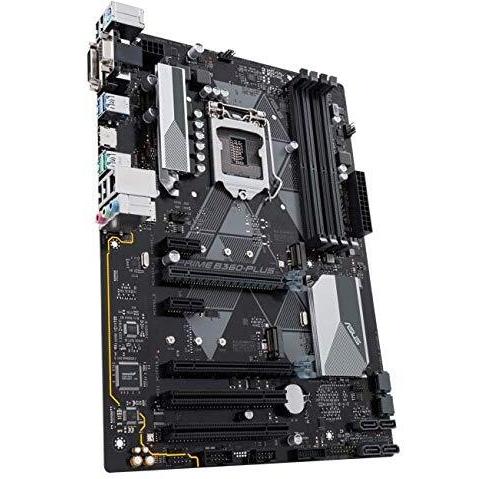

B360 Plus CSM Board
Sponsored This site contains affiliate links for which we may receive compensation. More information
Find other available options:
| Identifiers | |
|---|---|
| Model | ASUS 90MB0WB0-M0EAYC |
| MPN | ASUS 90MB0WB0-M0EAYC |
| Dimensions / Weight | |
| Key Features | |
| ACPI version | 6.1 |
| ATX Power connector 24-pin | Yes |
| Audio output channels | 7.1 channels |
| BIOS memory size | 128 MB |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium® |
| Component for | PC |
| CPU fan connector | Yes |
| Depth | 221 mm |
| DVI-D ports | 1 |
| EPS power connector 8-pin | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Front panel audio connector | Yes |
| LAN controller | Realtek RTL8111H |
| Maximum internal memory | 64 GB |
| Maximum resolution | 4096 x 2160 pixels |
| Memory channels | Dual |
| Memory slots type | DIMM |
| Motherboard chipset | Intel® B360 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Non-ECC | Yes |
| Number of chassis fan connectors | 2 |
| Number of memory slots | 4 |
| Number of SATA III connectors | 6 |
| Parallel processing technology support | CrossFireX |
| Processor socket | LGA 1151 (Socket H4) |
| Supported memory clock speeds | 2133,2450,2666 MHz |
| Unbuffered memory | Yes |
| Width | 305 mm |
| Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64 |
Asus is a Taiwanese electronics company that produces a wide range of products, including laptops, desktops, mobile phones, tablets, and servers. Asus is best known for its laptops, which are often praised for their quality, features, and design.
