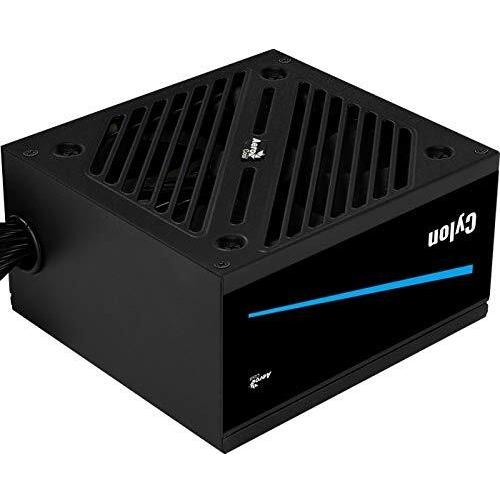

AeroCool Cylon 80 Plus Certified Power Supply Unit

Identifiers
MPN	Aerocool ACPW-CN70AKC.11
Dimensions / Weight
Key Features
80 PLUS certification The official efficiency certification level awarded to a power supply or other electrical device that meets the international 80 Plus standard, indicating superior energy efficiency compared to non‑certified products. Typical values include Bronze, Silver, Gold, Platinum and Titanium.	80 PLUS Bronze
ATX version	2.4
Cabling Type The configuration of the power supply’s internal cabling, indicating whether the cables are fully modular, semi‑modular, or non‑modular. This attribute helps users understand how many cables can be detached for easier cable management and system customization.	Non-Modular
Combined power (+12V) The total electrical power available from the +12 V rail of a device, expressed in watts (W). This value indicates how much current can be supplied to components that rely on the +12 V supply and is useful for assessing overall system capacity or compatibility with high‑power peripherals.	636 W
Combined power (+3.3V) The total electrical power that a device consumes or delivers, expressed in watts (W). It represents the overall energy usage of the product during operation and is useful for comparing efficiency, sizing power supplies, and estimating operating costs.	120 W
Combined power (+5Vsb) The total electrical power supplied to the +5 V standby rail of a device, expressed in watts (W). It indicates how much energy is available for low‑power components that remain active when the main system is powered down or in standby mode.	12.5 W
Combined power (-12V) The electrical power supplied to the device’s combined –12 V rail, expressed in watts (W). It indicates how much energy is available on that specific voltage line for components such as fans or auxiliary circuits.	3.6 W
Fan location The physical position of a fan within a product, such as top, side, bottom, rear or another specific area. This attribute helps users understand where airflow originates and how the fan integrates with the device’s design.	Top
Illumination Indicates whether a product has illumination or lighting capability. The value is "Yes" if the product includes any form of light source (LED, back‑lit display, built‑in lamp, etc.) and "No" otherwise.	Yes
Illumination colour The hue or combination of hues emitted by a light source, expressed as common colour names such as "Red", "Green", "Blue" or comma‑separated lists like "Red, Green, Blue". This attribute indicates the perceived colour of the illumination produced by devices such as LEDs, lamps, or other lighting fixtures.	Multi
Max output current (+12V) The maximum electrical current that a device can supply on its +12 V rail, expressed in amperes (A). It indicates the peak output capability of the power source for components that require 12‑volt power and is useful for matching devices with compatible power supplies or accessories.	53 A
Max output current (+3.3V) The highest electrical current that a device can supply from its +3.3 V rail, expressed in amperes (A). This value indicates the maximum load capacity of the power supply or regulator for components powered at 3.3 V and helps users verify compatibility with devices requiring this voltage level.	20 A
Max output current (+5Vsb) The highest electrical current that a device can supply to its +5 Vsb power rail under normal operating conditions. This value indicates the maximum load the +5 Vsb output can handle and helps users verify compatibility with components such as fans, LEDs, or other peripherals that draw power from this rail.	2.5 A
Max output current (-12V) The highest electrical current that a device can deliver from its –12 V rail under normal operating conditions, expressed in amperes (A). This value indicates the maximum output capability of the –12 V supply and helps users verify compatibility with power supplies or other components that require this voltage level.	0.3 A
Motherboard power cable length The linear distance that the motherboard power cable covers, expressed with a standard unit of length such as meters, centimeters or inches. It represents the total usable length available to connect the motherboard to its power supply and other components.	50 cm
Motherboard power connector The type of main power connector used on a motherboard, such as the standard ATX 24‑pin or the 20+4 pin variant. It indicates which cable and socket are required to supply power from the power supply unit to the board.	20+4 pin ATX
Number of sata power connectors The total count of SATA power connectors available on a power supply or motherboard. It indicates how many physical SATA power ports can be used to connect storage devices such as hard drives, SSDs, or optical drives. The value is an integer and helps users determine the expansion capacity for SATA-based storage.	5
PCI Express power connectors (6+2 pin) The total count of power connectors that use the PCI Express (6+2 pin) configuration on a device, such as a computer or power supply unit. This value indicates how many separate power connections are available for components that require PCIe power delivery.	4
Peripheral (Molex) power connectors (4-pin) The total count of Molex 4‑pin power connectors present on the product. This value indicates how many separate 4‑pin power contacts are available for connecting peripherals or components that require this connector type.	3
Power supply unit (PSU) form factor The physical configuration or design of a power supply unit, such as ATX, TFX, SFX, or 1U. It indicates the dimensions and mounting options that determine compatibility with computer cases and other hardware.	ATX
SATA power cable length The linear distance that a SATA power cable can cover, expressed in a standard unit of length such as millimetres (mm), centimetres (cm) or inches. It represents the total usable length of the cable for connecting a SATA power connector to a device.	500,650,800 mm

Aerocool is a Taiwanese computer hardware company that produces cases, power supplies, and other peripherals for computers. The company was founded in 2001, and has since become a well-known name in the computer hardware industry. Aerocool products are known for their high quality and innovative designs, and the company has a large following among PC gamers.
