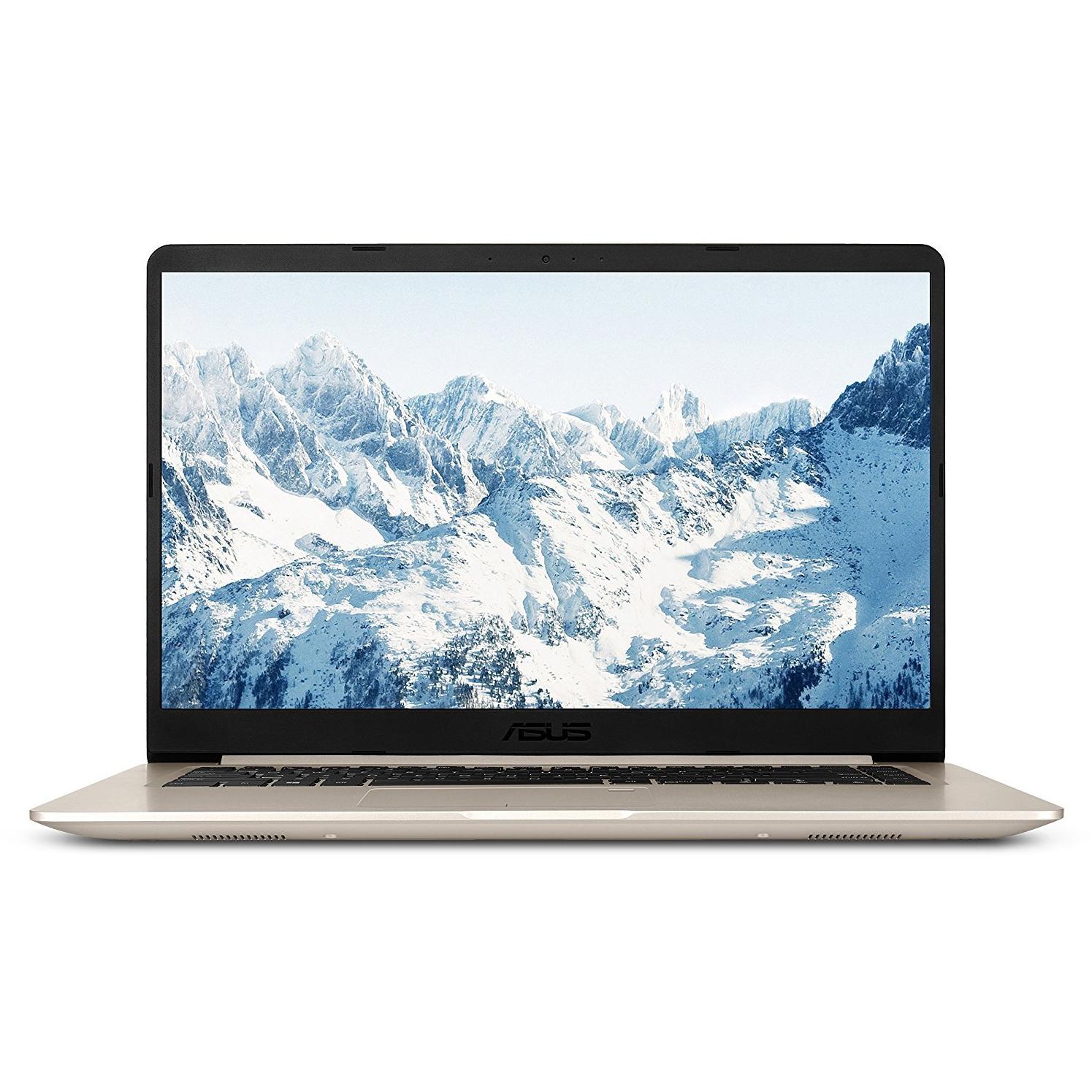

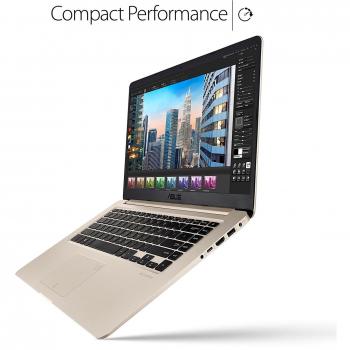

ASUS VivoBook Slim with Intel Core i5-7200U

Sponsored  This site contains affiliate links for which we may receive compensation. More information
Find other available options:
Identifiers
Model ASUS S510UQ-BQ178T
MPN ASUS S510UQ-BQ178T
Dimensions / Weight
Key Features
AC adapter frequency
The operating frequency of the alternating current supplied to an AC adapter, expressed in hertz (Hz). It indicates the mains frequency range that the charger can handle and ensures proper operation with the connected device.
50 - 60 Hz
AC adapter included
Indicates whether the product comes with an AC power adapter included in the package. A value of "Yes" means a charger is supplied, while "No" indicates that no charger is provided and the user must obtain one separately.
Yes
AC adapter input voltage
The range of alternating current voltage that an AC adapter can accept, expressed in volts (V). It specifies the minimum and maximum supply voltages compatible with the device, ensuring safe operation across different regions and power standards.
100 - 240 V
AC adapter output current
The electrical current supplied by an AC power adapter to a device, expressed in amperes (A). It indicates the maximum output current that the adapter can provide under normal operating conditions and helps users verify compatibility with devices or accessories that require a specific input current.
3.42 A
AC adapter output voltage
The electrical potential difference supplied by the AC adapter to a device, expressed in volts (V). It indicates the nominal voltage that the charger outputs and is used to match the adapter with compatible equipment.
19 V
AC adapter power 65 W
Aspect ratio
The proportion between the width and height of a display, image or video, expressed as two numbers separated by a colon (e.g., 16:9). It indicates whether content is designed for widescreen, square, or other aspect ratios.
16:9
Audio system
Specifies the audio system installed or supported by the product, such as Dolby Audio, SonicMaster, MaxxAudio Pro, or other proprietary audio processing technologies. The value is a free‑text string that identifies the main audio engine or brand used for sound playback and processing.
SonicMaster
Bluetooth Yes
Bluetooth version
The specific version of the Bluetooth standard supported by the product, indicating its capabilities for wireless communication and compatibility with other devices. Values may be numeric (e.g., 4.2, 5.0) or include additional descriptors such as "+HS" or feature lists.
4.1
Built-in microphone
Indicates whether the product includes at least one built‑in microphone. A value of "Yes" means that the device has an integrated microphone, while "No" indicates it does not.
Yes
Bus Type
The interface or communication bus that a component uses to connect with other parts of a system, such as PCI Express, USB, SATA, or legacy buses like FSB and QPI. It indicates the protocol and physical connection used for data transfer between devices.
OPI
Card reader integrated
Indicates whether the device includes a built‑in card reader that can read removable memory cards such as SD, microSD, MMC or similar formats.
Yes
Charging port type
The physical connector used to charge the device, such as USB Type‑C, DC‑in jack, Micro‑USB, or proprietary connectors. It indicates the type of port that supplies power to the product and helps users identify compatible chargers or accessories.
DC-in jack
Compatible memory cards
List of the memory card types that a device can read or write, such as MicroSD (TransFlash), SD, MMC, CompactFlash, and others. Each value represents a format that the device’s slot or reader supports for storage expansion.
SD,SDHC
Configurable TDP-down frequency
The operating frequency of a processor when the system reduces power consumption to improve energy efficiency, expressed in hertz (Hz). It indicates the minimum guaranteed clock speed that the CPU can run at during low‑power modes and helps users understand how the device balances performance with battery life or thermal limits.
800 MHz
Depth
The linear measurement of an object from front to back or top to bottom, expressed in a physical unit such as millimeters, centimeters, inches, etc. It indicates how deep the item is and can be used for fitting, compatibility, or spatial planning.
243.5 mm
Discrete graphics adapter
Indicates whether the product includes a dedicated graphics adapter (discrete GPU) separate from any integrated graphics. A value of "Yes" means a discrete GPU is present, while "No" indicates only integrated graphics are available.
Yes
Discrete graphics adapter model NVIDIA® GeForce® 940MX
Discrete graphics memory type GDDR5
Display Diagonal 39.6 cm (15.6")
Display resolution
The pixel dimensions of a display or image, expressed as width by height (e.g., 1920x1080). It indicates how many pixels are used to render visual content and is commonly used for monitors, TVs, smartphones, cameras, and digital images.
1920 x 1080 pixels
Display surface
The visual appearance or texture of a product’s display surface, such as matte, glossy, or satin. It indicates how light reflects off the screen and can affect glare, visibility, and aesthetic preference for users.
Matt
DVI port
Indicates how many DVI connectors are present on the product. The value is a simple integer representing the total count of DVI ports, regardless of type or version.
No
ECC supported by processor
Indicates whether the processor in a device supports Error Correcting Code (ECC) memory, allowing detection and correction of single-bit errors during data storage or transfer.
No
Embedded options available
Indicates whether the product includes embedded options such as firmware features, hardware modules or configuration settings that are built into the device and available for use without external accessories.
No
Enhanced intel speedstep technology Yes
Ethernet LAN
Indicates whether the product includes an Ethernet LAN interface for wired network connectivity, allowing data transmission over RJ‑45 or compatible cables.
No
Execute disable bit
Indicates whether the processor’s Execute Disable bit is enabled, allowing the CPU to prevent execution of code from memory regions marked as non-executable.
Yes
Form Factor
Specifies the physical configuration or design of a product, such as ATX, Micro‑ATX, Mini‑ITX, tower, case with cover, etc. It describes how the device is built and what mounting or expansion options it supports.
Clamshell
Front camera
Indicates whether the product is equipped with a front-facing camera. The value can be "Yes" or "No", representing the presence or absence of this camera.
Yes
Full-size keyboard
Indicates whether the product includes a full‑size keyboard, meaning a standard layout with all keys (including space bar, return, and function keys) arranged in a conventional arrangement suitable for typing on a laptop or desktop. A value of "Yes" means the device has such a keyboard; "No" indicates it does not.
Yes
Graphics & IMC lithography
The minimum feature size that can be etched onto a semiconductor chip, expressed in nanometers (nm). It indicates the manufacturing technology generation and influences performance, power consumption, and integration density of the processor.
14 nm
HD type
The pixel dimensions of a screen’s display expressed as width by height (e.g., 1920×1080). It indicates the number of pixels that can be shown on the monitor or device, affecting image sharpness and clarity.
Full HD
HDMI ports quantity 1
Height
The vertical dimension of a product measured from its lowest to highest point. It is expressed in a physical unit such as millimetres, centimetres or inches and applies to any item where height is relevant, including books, electronics, furniture and other objects.
17.9 mm
Idle states
A list of the various low‑power or standby modes that a device can enter to conserve energy when not actively performing tasks.
Yes
Intel 64
Indicates whether the processor is compatible with the Intel® 64 architecture, enabling it to run operating systems and applications designed for x86‑64 processors.
Yes
Intel clear video technology
Indicates whether the product incorporates Intel’s Clear Video HD technology, a hardware feature that enhances video playback and capture quality by providing smoother motion, reduced artifacts, and improved color accuracy.
Yes
Intel enhanced halt state
Indicates whether the processor includes Intel’s Enhanced Halt State feature, which allows the CPU to enter a low‑power idle mode when not actively executing instructions, thereby reducing energy consumption without compromising performance.
Yes
Intel flex memory access
Indicates whether the product supports Intel’s flexible memory access feature, which allows dynamic allocation and sharing of memory resources between the CPU and other components to improve performance and power efficiency.
Yes
Intel trusted execution technology
Indicates whether the product incorporates Intel’s Trusted Execution Technology, a security feature that creates isolated execution environments to protect sensitive code and data from tampering or unauthorized access.
No
Intel TSX-NI
Indicates the specific version of Intel Transactional Synchronization Extensions – No Interlock (TSX‑NI) supported by a processor, which determines its capability for efficient transaction processing and concurrency control.
No
Internal memory
The total amount of internal memory available in a device, expressed as a data size such as megabytes (MB) or gigabytes (GB). It indicates how much information the component can hold for active processes and affects multitasking performance.
8 GB
LED backlight
The illumination source used behind a display panel, such as LED, WLED, CCFL or LCD. It determines the brightness, energy efficiency and color accuracy of the screen.
Yes
Manual
Indicates whether a user manual—physical or digital—is provided with the product. A value of "Yes" means that a manual is included, while a value of "No" indicates that no manual is supplied.
Yes
Maximum internal memory
The largest amount of internal random‑access memory that a device can support, expressed as a data size such as megabytes or gigabytes. It indicates the maximum capacity for active processes and multitasking performance.
16 GB
Maximum number of PCI Express lanes
The total count of PCI Express lanes available on a device or component, indicating the maximum number of high‑speed communication channels that can be used simultaneously for peripherals such as graphics cards, storage devices, and networking adapters.
12
Maximum on-board graphics adapter memory
The maximum amount of dedicated video memory that the integrated graphics adapter built into a device can provide, expressed as a data size (e.g., megabytes or gigabytes). This value indicates how much graphical processing power is available for rendering, gaming, and other GPU‑intensive tasks.
32 GB
Microphone in
Indicates whether the product includes at least one built‑in microphone. A value of "Yes" means that the device has an integrated microphone, while "No" indicates it does not.
No
Numeric keypad
Indicates whether the product includes a numeric keypad area on its keyboard, typically found in full-size or laptop keyboards with an integrated numeric section.
No
On-board graphics adapter
The model name or number of the integrated graphics adapter built into a device, such as a laptop, desktop, or motherboard. It identifies the specific GPU variant used for rendering and video processing, allowing users to compare visual performance and compatibility across products.
Yes
On-board graphics adapter base frequency
The clock speed at which the integrated graphics processor runs under normal conditions, expressed in hertz (Hz). It indicates how many cycles per second the GPU performs and is useful for comparing visual performance across devices that use an on‑board graphics solution.
300 MHz
On-board graphics adapter DirectX version
The version number of the DirectX graphics API supported by a device, indicating its graphical capabilities and compatibility with software that relies on specific DirectX features.
12.0
On-board graphics adapter ID
The unique identifier of the integrated graphics adapter built into a device, typically expressed as a hexadecimal string such as "0x5916" or a numeric code like "1916". This value allows users and systems to distinguish between different GPU models and versions across laptops, desktops, and motherboards.
0x5916
On-board graphics adapter model
The model name or number of the integrated graphics adapter built into a device, such as a laptop or motherboard. It identifies the specific GPU variant used for rendering and video processing, allowing users to compare visual performance and compatibility across products.
Intel® HD Graphics 620
On-board graphics adapter OpenGL version
The specific version of the OpenGL graphics API supported by a device, indicating its rendering capabilities and compatibility with software that relies on this standard.
4.4
Operating system installed
The operating system that is installed on the device, indicating the software platform that manages hardware resources and provides services for applications. It can be a commercial OS such as Windows or macOS, an open‑source distribution like Linux, or a proprietary firmware used in embedded devices.
Windows 10 Home
Optical drive type
The type of optical drive included in a device, such as DVD‑RW, DVD‑Writer, Blu‑Ray RW, or no optical drive. This attribute indicates whether the product can read or write optical media and specifies the particular model or capability when available.
No
Password Protection
Indicates whether a device requires the entry of a password to access sensitive functions or data, providing an additional layer of security against unauthorized use.
Yes
Password protection type
The method or combination of methods used to secure a device or system with a password, such as requiring a password on boot, during user login, or for supervisor access. It indicates which security steps are enabled and can be listed separately.
BIOS,HDD,User
PCI Express configurations
A textual description of how PCI Express lanes are distributed across the available slots or interfaces in a device. The value typically lists groups of lanes separated by commas, where each group may contain a number of lanes and optional ‘+’ signs to indicate combined lanes that share the same speed (e.g., "1x16", "2x8", "1x8+2x4"). This attribute helps users understand the bandwidth capacity and compatibility of expansion slots.
1x2+2x1,1x4,2x2,4x1
PCI Express slots version
The version of the PCI Express specification supported by a device or component. It indicates the maximum bandwidth and compatibility with PCIe devices such as graphics cards, storage controllers, and expansion cards. The value is typically expressed as a numeric revision (e.g., 2.0, 3.0, 4.0) but may also include descriptive labels for specific generations.
3.0
Pointing device
The type of pointing device integrated into or used with the product, such as a touchpad, clickpad, trackpoint, or mouse. The value is a free‑text label that identifies the specific form factor or mechanism the user interacts with to move the cursor or select items.
Touchpad
Power cord included
Indicates whether a power cord is supplied with the product. A value of "Yes" means that a power cable is included in the package, while "No" indicates it is not provided and must be purchased separately.
Yes
Processor ARK ID
The Processor ARK ID is a numeric identifier assigned by Intel to each processor model. It uniquely distinguishes one CPU from another and can be used to look up detailed specifications, compatibility information, or firmware updates for that specific chip.
95443
Processor boost frequency
The maximum operating frequency that a processor can reach when its turbo or boost feature is active, expressed in hertz (Hz). This value indicates the peak performance capability of the CPU under load and helps users compare how fast a processor can run beyond its base clock speed.
3.10 GHz
Processor cache
The amount of internal memory reserved for a processor’s cache, expressed in units such as megabytes (MB) or gigabytes (GB). This value indicates how much data the CPU can store locally to accelerate access and improve performance.
3 MB
Processor cache type
The type or level of the internal cache memory in a processor, such as L1, L2, L3, or Smart Cache. This attribute indicates the hierarchical structure and naming convention used by the CPU manufacturer to describe its cache organization.
Smart Cache
Processor code
A unique identifier that represents the specific model or variant of a computer processor. The code is typically an alphanumeric string (e.g., "SR2ZU", "SR3LA") used by manufacturers to distinguish between different CPU models, generations, and configurations. It can be entered as free text and may appear in product listings, technical specifications, or inventory records.
SR2ZU
Processor codename Kaby Lake
Processor family
The processor family identifies the group or series of CPU models that share a common architecture, design, and performance characteristics. It helps users compare processors across brands and generations by indicating the underlying technology used in the chip.
7th gen Intel® Core™ i5
Processor frequency
The fundamental operating frequency of a processor, expressed in hertz (Hz). It indicates the speed at which the CPU runs under normal conditions and is typically reported in gigahertz (GHz) or megahertz (MHz). This value helps users compare performance potential across different models.
2.50 GHz
Processor manufacturer
The company that designs and produces the central processing unit (CPU) used in a device. This value identifies the brand of the processor, such as Intel, AMD, Qualcomm, or ARM Holdings, allowing users to assess compatibility, performance expectations, and support resources.
Intel
Processor model
Identifies the exact model of the central processing unit used in a device, including brand and numeric designation such as "Intel Core i5-8250U" or "AMD Ryzen 7 3700X". This value allows users to distinguish between different processor families, generations, and performance levels.
i5-7200U
Processor operating modes
The set of instruction set architectures or execution modes that a processor can operate in, such as 32‑bit or 64‑bit. This attribute indicates the architectural mode(s) supported by the CPU and helps users determine compatibility with software that requires a specific bitness.
64-bit
Processor package size
The overall dimensions of a processor’s physical package, expressed as length × width × height in millimetres or inches. It indicates the size that must fit within a motherboard socket or mounting area and helps users compare compatibility across different CPU models.
42 x 24 mm
Processor socket
The physical connector used by a processor to attach to a motherboard or other compatible platform. Common examples include LGA 1151, BGA 1440, Socket AM4, and LGA 1200. This attribute indicates the exact socket designation required for proper CPU installation and compatibility.
BGA 1356
Processor threads
The number of independent execution units (threads) that a processor can handle simultaneously. This value indicates how many parallel tasks the CPU can process at once, which affects multitasking performance and workload distribution.
4
Product Type
Indicates the general classification or type of an item, such as "laptop", "projector", "router" or "paint". It helps users quickly identify the nature of the product and compare similar items across categories.
Notebook
S/PDIF out port No
SSD Capacity 256 GB
Stepping
Der CPU‑Stepping bezeichnet die interne Version eines Prozessormodells, die bei jeder neuen Fertigungsrunde geändert wird. Er gibt an, welche Revision des Chips verwendet wurde und kann Einfluss auf Leistung, Energieverbrauch oder Kompatibilität haben.
H0
Storage media
The type of storage medium used in the product, such as SSD, HDD, eMMC, Flash, or hybrid combinations. It indicates whether the device uses solid‑state, magnetic, or other forms of memory and helps users understand the underlying technology.
SSD
Supported instruction sets
A list of processor instruction set extensions that a CPU can execute, such as AVX, AVX2, SSE4.1, SSE4.2, and AVX‑512. Each value represents an individual extension or group of extensions supported by the hardware.
AVX 2.0,SSE4.1,SSE4.2
Thermal monitoring technologies Yes
Tjunction
Die maximale Temperatur, bei der ein Produkt sicher betrieben werden kann. Der Wert wird in Grad Celsius angegeben und gibt an, bis zu welcher Hitze das Gerät ohne Gefahr für Funktionsstörungen oder Schäden arbeiten darf.
100 °C
Top Wi-Fi standard
A list of the wireless networking protocols and frequency bands that a device can connect to, such as IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, Wi‑Fi 4 (802.11n), Wi‑Fi 5 (802.11ac) or Wi‑Fi 6 (802.11ax). The values are typically separated by commas and may include both the technical name and a consumer‑friendly label.
Wi-Fi 5 (802.11ac)
Touchscreen
Indicates whether a device has a touchscreen interface that can detect touch input. The value is "Yes" if the device includes a functional touchscreen, and "No" otherwise.
No
Weight
The mass of the product expressed in a standard unit such as grams or kilograms. It represents how heavy the item is and can be used for shipping calculations, handling instructions, or consumer information.
1.7 kg
Wi-Fi
Indicates whether the product has built‑in Wi‑Fi capability, allowing it to connect to wireless networks without requiring external adapters or dongles.
Yes
Wi-Fi standards
A list of the wireless networking protocols and frequency bands that a device can connect to, such as 802.11a, 802.11b, 802.11g, Wi‑Fi 4 (802.11n), Wi‑Fi 5 (802.11ac) or Wi‑Fi 6 (802.11ax). The values are typically separated by commas and may include both the technical name and a consumer‑friendly label.
802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Width
The horizontal measurement of a product, expressed in a linear unit such as millimetres or inches. It indicates how wide the item is from one side to the other and is used for sizing, fitting, and compatibility purposes.
361.4 mm
Windows keys
The total count of individual key switches present on a keyboard or similar input device, including all standard, function, and special keys. This value indicates how many separate keys are available for typing, gaming, shortcuts, or other functions, regardless of layout or branding.
Yes
