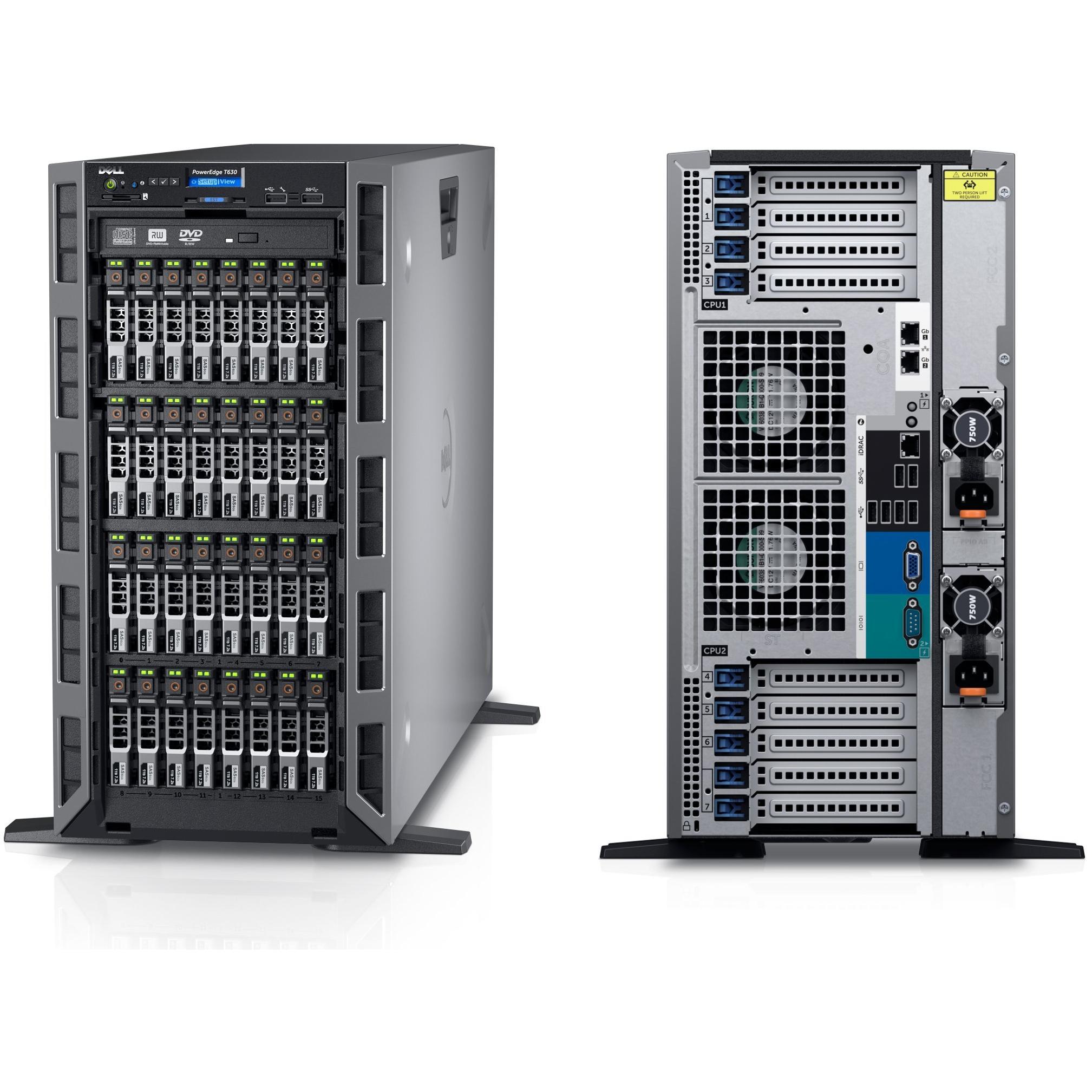

Dell PowerEdge T630 Tower Server (E5-2620V4, 2.1 GHz) with 8 MB Cache and 750 W Power Supply
Sponsored This site contains affiliate links for which we may receive compensation. More information
Find other available options:
| Identifiers | |
|---|---|
| Model | Dell T630-0831 |
| MPN | Dell T630-0831 |
| Dimensions / Weight | |
| Key Features | |
| Built-in display | Yes |
| Bus Type | QPI |
| Cables included | AC |
| Cabling technology | 10/100/1000Base-T(X) |
| Card reader integrated | Yes |
| Chassis type | Tower (5U) |
| Compatible memory cards | SD |
| Compatible processor series | Intel® Xeon® |
| Dell E-Value Code | PET63003b |
| Depth | 708.7 mm |
| Display | LCD |
| ECC | Yes |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Enhanced intel speedstep technology | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Execute disable bit | Yes |
| Graphics adapter | G200 |
| Graphics adapter family | Matrox |
| HDD Capacity | 300 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| HDD speed | 10000 RPM |
| Height | 443.5 mm |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Idle states | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel enhanced halt state | Yes |
| Intel flex memory access | No |
| Intel trusted execution technology | Yes |
| Intel TSX-NI | Yes |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 1536 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Maximum storage capacity | 19.2 TB |
| Memory channels supported by processor | Quad |
| Memory clock speed | 2400 MHz |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory slots | 24 x DIMM |
| Motherboard chipset | Intel C610 |
| Non-operating altitude | 0 - 12000 m |
| Number of HDDs installed | 1 |
| Operating altitude | 0 - 3048 m |
| Optical drive type | DVD±RW |
| PCI Express slots version | 3.0 |
| Performance management | IPMI 2.0, Dell OpenManage |
| Power supply | 750 W |
| Power supply input frequency | 50 - 60 Hz |
| Processor ARK ID | 92986 |
| Processor boost frequency | 3 GHz |
| Processor cache type | Smart Cache |
| Processor code | SR2R6 |
| Processor codename | Broadwell |
| Processor cores | 8 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 2.1 GHz |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2620V4 |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 51 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Rack rails | Yes |
| RAID levels | 0,1,5,6,10,50,60 |
| RAID support | Yes |
| Redundant fans support | Yes |
| Stepping | R0 |
| Supported storage drive interfaces | SAS,Serial ATA |
| Tcase | 74 °C |
| Thermal monitoring technologies | Yes |
| Weight | 37.6 kg |
| Width | 304.5 mm |
Dell is a computer technology company that was founded by Michael Dell in 1984. The company is headquartered in Texas and is one of the largest technology companies in the world. Dell manufactures and sells personal computers, servers, data storage devices, network switches, software, and computer peripherals.
