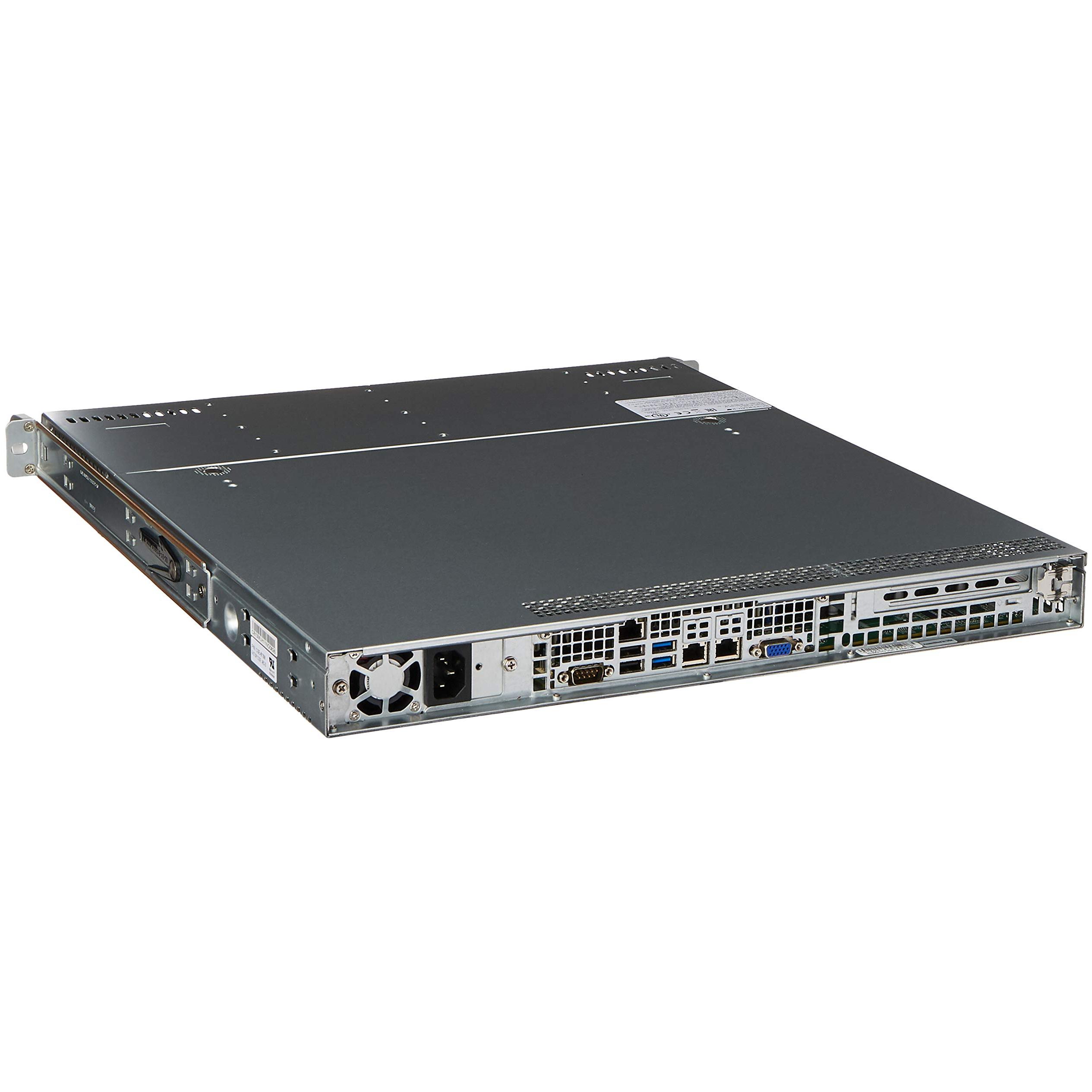

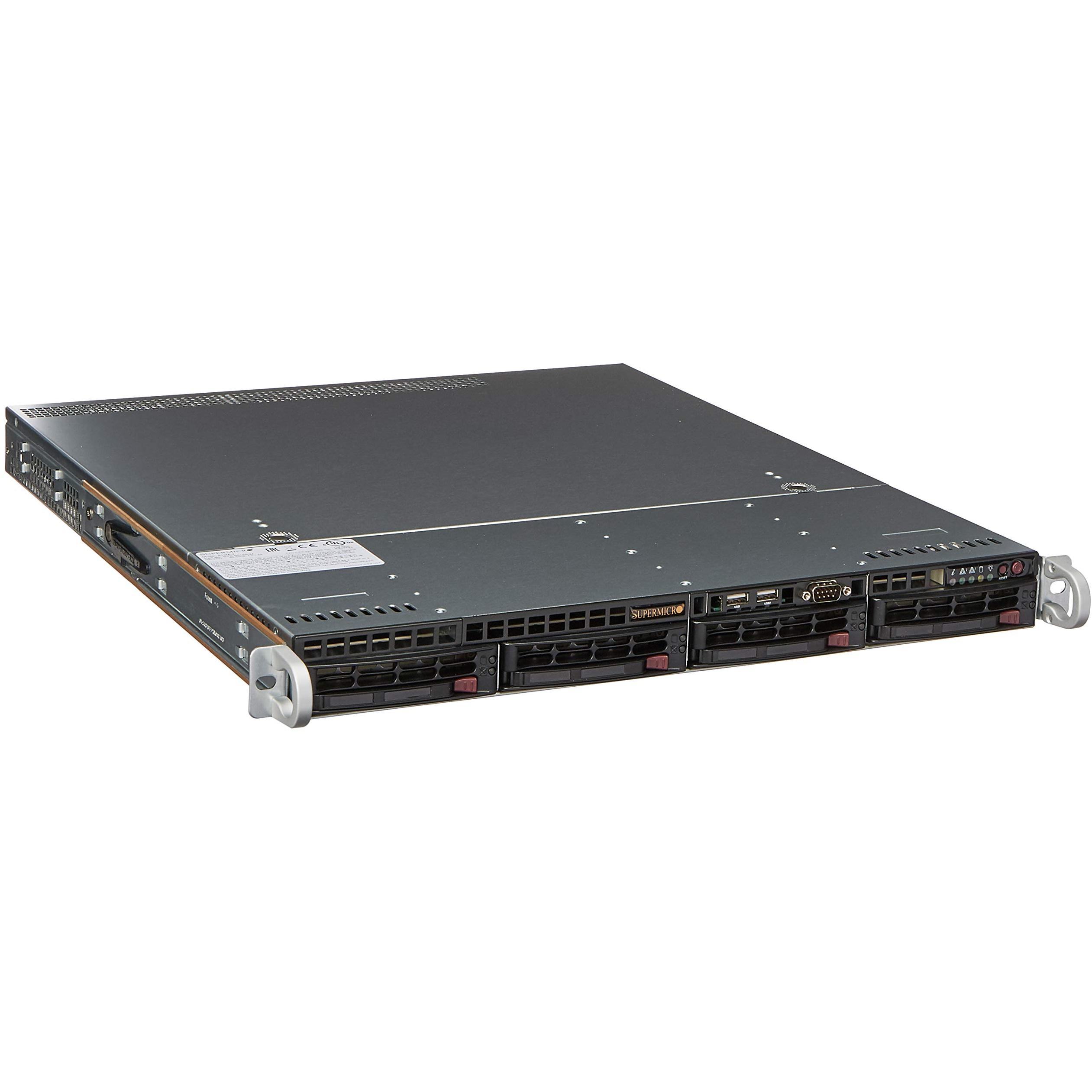

Supermicro 5018R One‑Way 1U Server

Identifiers
Model	Supermicro SYS-5018R-M
MPN	Supermicro SYS-5018R-M
Dimensions / Weight
Key Features
BIOS type The firmware interface used by a computer system to initialize hardware and load the operating system, such as UEFI or legacy BIOS. It indicates whether the motherboard supports modern features like secure boot, fast startup, or compatibility with older operating systems.	AMI
Bluetooth	No
Built-in camera Indicates whether the product includes a built‑in camera that can capture images or video directly, without requiring an external device. A value of "Yes" means the device has such a camera; "No" means it does not.	No
Card reader integrated Indicates whether the device includes a built‑in card reader that can read removable memory cards such as SD, microSD, MMC or similar formats.	No
Certification A list of official certifications or compliance marks that the product has received from regulatory bodies, safety organizations, or industry standards groups. Each entry represents a distinct certification such as CE, FCC, RoHS, UL, or WEEE, and may include additional details like version numbers or specific test reports.	RoHS
Chassis type The physical configuration or shape of a computer chassis, such as tower, rack‑mount (e.g., 1U, 2U), desktop, mini‑PC, or other compact designs. It indicates the overall size and mounting style that determines compatibility with motherboards, power supplies, and case accessories.	Rack (1U), -
Compatible processor series List of processor families that the product can support, such as Intel Celeron, Intel Core i5, AMD Ryzen 3, etc. Each value represents a distinct CPU family or brand that is compatible with the hardware platform.	Intel® Xeon®
Depth The linear measurement of an object from front to back or top to bottom, expressed in a physical unit such as millimeters, centimeters, inches, etc. It indicates how deep the item is and can be used for fitting, compatibility, or spatial planning.	503 mm
ECC Indicates whether the memory module or component supports Error‑Correcting Code (ECC) for detecting and correcting single-bit errors during operation. A value of "Yes" means ECC is enabled, allowing automatic correction of data corruption; a value of "No" indicates no ECC support.	Yes
Ethernet LAN Indicates whether the product includes an Ethernet LAN interface for wired network connectivity, allowing data transmission over RJ‑45 or compatible cables.	Yes
Graphics adapter The specific model or designation of the graphics adapter present in a device, such as "Intel HD Graphics", "AMD Radeon Vega 8", or "NVIDIA GeForce GTX 1660". This value helps users understand the visual performance and capabilities that the product can deliver.	AST2400
Graphics adapter family The brand or family of the graphics adapter present in a device, such as Intel, AMD, NVIDIA, Apple, or other vendors. It indicates the general source of the GPU technology and helps users compare visual performance across products.	Aspeed
Height The vertical dimension of a product measured from its lowest to highest point. It is expressed in a physical unit such as millimetres, centimetres or inches and applies to any item where height is relevant, including books, electronics, furniture and other objects.	43 mm
LAN controller The specific model or designation of the LAN (network) controller integrated into a device, such as "Intel I219-V" or "Realtek RTL8111H." This value identifies the exact network interface hardware used for Ethernet connectivity, enabling users to compare performance, compatibility, and support across products.	Intel® I350-AM2, Realtek RTL8201N
LED indicators A list of the functions or statuses that an LED indicator on a device can display, such as power status, activity, link, and other operational signals.	Yes
Maximum internal memory The largest amount of internal random‑access memory that a device can support, expressed as a data size such as megabytes or gigabytes. It indicates the maximum capacity for active processes and multitasking performance.	512 GB
Motherboard chipset The model of the motherboard’s chipset, indicating the family of supported processors and integrated features such as I/O interfaces, memory support, and peripheral connectivity.	Intel® C612
Networking features A list of the networking protocols and standards that a device can support or comply with, such as IEEE 802.11 variants for wireless, IEEE 802.3 for Ethernet, or other relevant networking specifications. The values are typically separated by commas and may include both technical identifiers and consumer‑friendly labels.	Gigabit Ethernet LAN
Number of memory slots The count of physical memory slots available on a device for installing RAM modules. It indicates how many separate DIMM sticks can be installed or upgraded, regardless of size or speed.	8
Number of SATA connectors The total count of physical SATA connectors available on the product. It indicates how many separate SATA ports are present, regardless of version or type, allowing users to assess storage expansion capacity.	10
Number of storage drives supported The total count of individual storage drives that a product can accommodate or support. This includes internal and external hard disks, solid‑state drives, or other removable media devices. The value is an integer representing how many separate drive units the system can host, install, or connect.	4
Optical drive type The type of optical drive included in a device, such as DVD‑RW, DVD‑Writer, Blu‑Ray RW, or no optical drive. This attribute indicates whether the product can read or write optical media and specifies the particular model or capability when available.	No
Package depth The linear measurement from front to back or top to bottom of a product’s packaging, expressed in a physical unit such as millimeters, centimeters, inches, etc. It indicates how deep the packaged item is and can be used for fitting, compatibility, or spatial planning.	750 mm
Package Height The vertical dimension of a product’s packaging measured from its lowest to highest point. It is expressed in a physical unit such as millimetres, centimetres or inches and helps customers assess how tall the package will be when stored or shipped.	216 mm
Package width The horizontal measurement of a product’s packaging, expressed in a linear unit such as millimetres or inches. It indicates how wide the package is from one side to the other and helps customers assess fit for storage, shipping, or display.	610 mm
Power LED	Yes
Power requirements The electrical supply specifications needed by a device, expressed as voltage, current, frequency or a combination of these parameters. It indicates the range or exact values of mains or battery power that the product can accept or deliver, helping users verify compatibility with outlets, adapters or power supplies.	100 - 240V, 50-60Hz
Power supply The electrical power consumption or output of the product, expressed in watts (W). It indicates how much energy the device uses during operation or how much power it can deliver to connected equipment.	350 W
Processor socket The physical connector used by a processor to attach to a motherboard or other compatible platform. Common examples include LGA 1151, BGA 1440, Socket AM4, and LGA 1200. This attribute indicates the exact socket designation required for proper CPU installation and compatibility.	LGA 2011 (Socket R)
RAID levels A comma‑separated list that specifies the RAID configurations supported by a storage controller or device. Each entry can be a numeric level (e.g., 0, 1, 5, 10) or a special label such as JBOD. This attribute indicates which disk arrangements the system can manage.	0,1,10
Redundant fans support	Yes
Storage drive interface List of physical or logical interfaces that allow communication between a hard drive and other devices, such as SATA, M.2 PCIe, U.2, SAS, NVMe, or other standard connections.	Serial ATA III
Storage drive sizes supported A list of the physical sizes and types of storage drives that a product can accommodate, such as 2.5‑inch, 3.5‑inch, or M.2. The values are typically separated by commas and may include additional descriptors like "M.2" to indicate an internal solid‑state drive interface.	3.5"
Supported memory clock speeds The operating frequencies that a processor or memory module can run at, expressed in megahertz (MHz) or gigahertz (GHz). This attribute lists all supported clock rates, allowing users to understand the performance range of the component.	1600,1866,2133 MHz
Wi-Fi Indicates whether the product has built‑in Wi‑Fi capability, allowing it to connect to wireless networks without requiring external adapters or dongles.	No
Width The horizontal measurement of a product, expressed in a linear unit such as millimetres or inches. It indicates how wide the item is from one side to the other and is used for sizing, fitting, and compatibility purposes.	437 mm

Supermicro is a brand of computer hardware, specializing in motherboards, servers, and storage devices. The company was founded in 1993 and is headquartered in San Jose, California. Supermicro products are used in a variety of industries, including cloud computing, big data, data center, and high performance computing.
