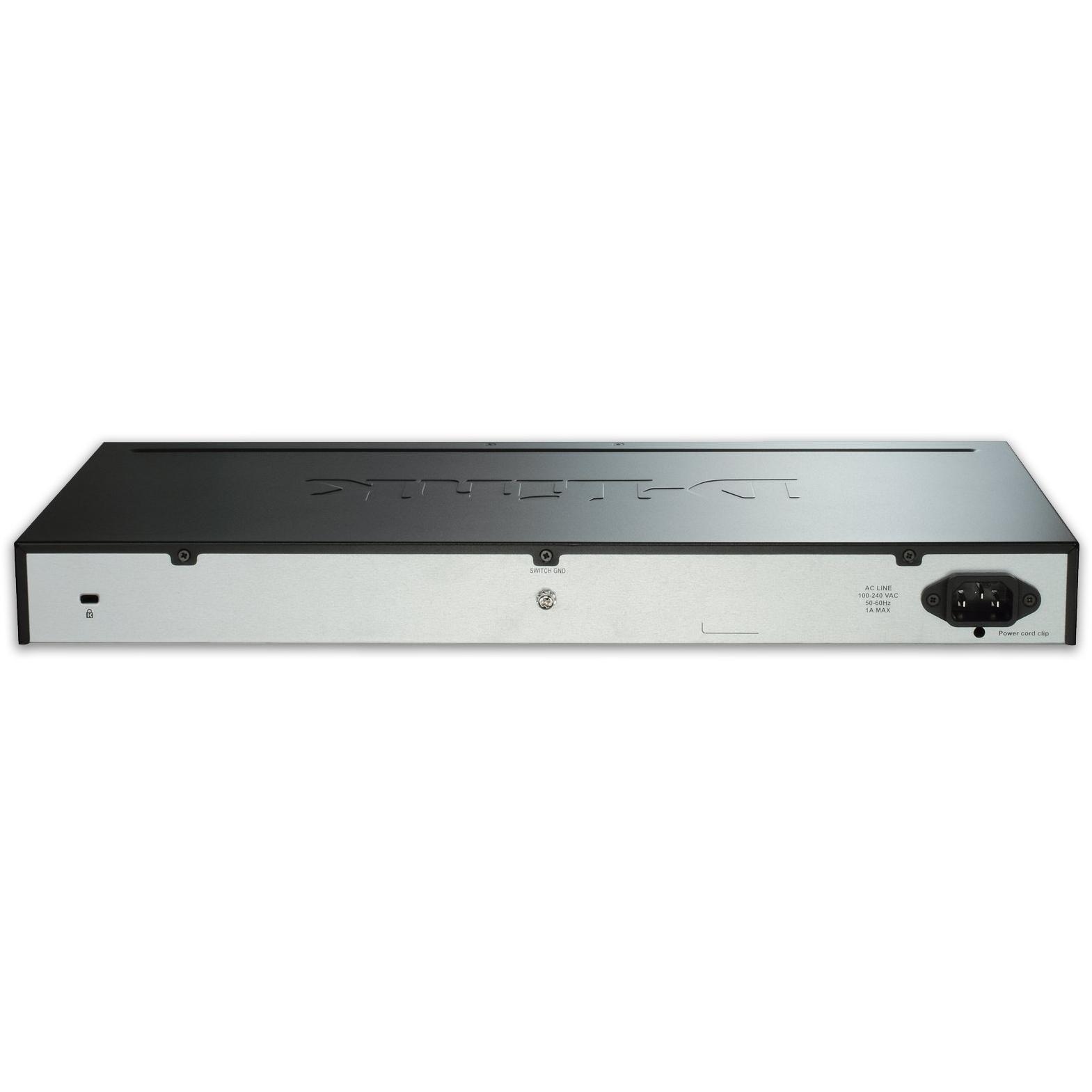

DGS-1510-52 52-Port Gigabit Switch

Identifiers
Model	D-Link DGS-1510-52
MPN	D-Link DGS-1510-52
Dimensions / Weight
Key Features
10g support Indicates whether the product supports 10 Gigabit Ethernet (10 GbE) connectivity, either through dedicated 10 GbE ports or via SFP+ modules that enable 10 GbE operation.	Yes
AC input frequency The frequency of the alternating current supplied to the device, expressed in hertz (Hz). It indicates the acceptable operating range for the electrical mains that powers the product.	50 - 60 Hz
AC input voltage The alternating current voltage range that the product accepts from its power source, expressed in volts (V). It indicates the minimum and maximum supply voltages compatible with the device.	100 - 240 V
Auto MDI/MDI-X Indicates whether the device can automatically detect and configure MDI or MDI‑X connections for network cables, simplifying cable management and reducing manual setup.	Yes
Auto-negotiation Indicates whether the device automatically negotiates link parameters such as speed, duplex mode and flow control with a connected partner, ensuring optimal communication settings without manual configuration.	Yes
Basic switching RJ-45 Ethernet ports quantity Indicates the total count of physical RJ‑45 Ethernet connectors available on a device for wired network connectivity. The value is an integer representing how many separate ports can be used to connect Ethernet cables.	48
Broadcast storm control Indicates whether a network device includes a feature that limits the amount of broadcast traffic to prevent network congestion and potential outages caused by excessive broadcast packets.	Yes
Cable types supported A list of the cable categories or standards that a product can use, such as Cat5e, Cat6, Cat6a, Cat7, Fiber, HDMI, USB, etc. The values are separated by commas and represent the types of cables compatible with the device.	Cat5,Cat5e
Certification A list of official certifications or compliance marks that the product has received from regulatory bodies, safety organizations, or industry standards groups. Each entry represents a distinct certification such as CE, FCC, RoHS, UL, or WEEE, and may include additional details like version numbers or specific test reports.	CE, FCC, C-Tick, VCCI, BSMI, CCC
Depth The linear measurement of an object from front to back or top to bottom, expressed in a physical unit such as millimeters, centimeters, inches, etc. It indicates how deep the item is and can be used for fitting, compatibility, or spatial planning.	210 mm
DHCP features A comma‑separated list of the DHCP roles and options that a device can provide or use, such as server, client, relay, snooping, option 82 support, and IPv6 variants. The value may contain multiple items for a single product.	DHCP server,DHCP client
Flow control support Indicates whether a device includes hardware or firmware that can manage the flow of data on its interfaces, such as enabling or disabling automatic pause frames, handling congestion, or providing other traffic‑control mechanisms. A value of "Yes" means the feature is present and can be configured; "No" indicates it is not available.	Yes
Forwarding Rate The maximum number of packets a device can forward per second, expressed in megapackets per second (Mpps) or similar units. It indicates the throughput capability of networking hardware such as switches and routers under optimal conditions.	104.16 Mpps
Full Duplex Indicates whether the product can transmit and receive data simultaneously on two channels, allowing bidirectional communication without delay. A value of "Yes" means the device supports full‑duplex operation; a value of "No" indicates it operates only in half‑duplex mode.	Yes
Heat dissipation The amount of thermal energy a product can dissipate, expressed in a standard unit such as BTU per hour or watts. It indicates the cooling requirement and helps compare how much heat the device generates during operation.	130.944 BTU/h
Height The vertical dimension of a product measured from its lowest to highest point. It is expressed in a physical unit such as millimetres, centimetres or inches and applies to any item where height is relevant, including books, electronics, furniture and other objects.	44 mm
IGMP snooping	Yes
Jumbo frames support	Yes
LED indicators A list of the functions or statuses that an LED indicator on a device can display, such as power status, activity, link, and other operational signals.	Activity,Link,Power
Link aggregation Indicates whether the device can combine multiple network connections into a single logical link to increase bandwidth or provide redundancy.	Yes
MAC address filtering Indicates whether the device supports filtering network traffic based on MAC addresses. When enabled, the device can allow or block communication for specific devices identified by their MAC address.	Yes
MAC address table The total count of unique MAC addresses that the device can store in its forwarding table. This value indicates how many devices can be simultaneously connected before the switch must start discarding or aging out older entries.	16000 entries
Manual Indicates whether a user manual—physical or digital—is provided with the product. A value of "Yes" means that a manual is included, while a value of "No" indicates that no manual is supplied.	Yes
Multicast support Indicates whether the device can send or receive IP multicast traffic, allowing it to participate in group communications such as streaming media, IPTV, and certain network protocols that rely on multicast distribution.	Yes
Noise level The sound intensity produced by a product, expressed in decibels (dB) or sones. It indicates how loud the device is during operation and helps users assess suitability for quiet environments.	44.2 dB
Number of fans The total count of fan units included in the product. This value indicates how many separate fans are present, which can affect cooling performance and noise levels.	2 fan(s)
Number of static routes The total count of manually configured static routing entries present in a networking device such as a router or switch. It indicates how many distinct destination networks are explicitly defined by the administrator, independent of dynamic routing protocols.	512
Package depth The linear measurement from front to back or top to bottom of a product’s packaging, expressed in a physical unit such as millimeters, centimeters, inches, etc. It indicates how deep the packaged item is and can be used for fitting, compatibility, or spatial planning.	555 mm
Package Height The vertical dimension of a product’s packaging measured from its lowest to highest point. It is expressed in a physical unit such as millimetres, centimetres or inches and helps customers assess how tall the package will be when stored or shipped.	101 mm
Package width The horizontal measurement of a product’s packaging, expressed in a linear unit such as millimetres or inches. It indicates how wide the package is from one side to the other and helps customers assess fit for storage, shipping, or display.	365 mm
Packet buffer memory The amount of temporary storage that a device allocates in its internal memory for buffering data before processing or forwarding it. Expressed as a digital capacity (e.g., kilobytes, megabytes), this value indicates how much information the hardware can hold at once and influences performance when handling high‑throughput or bursty traffic.	3 MB
Pallet length The linear dimension of a pallet measured in a standard unit such as meters, centimeters or inches. It represents the overall length from one end to the other and is used to compare the size of pallets across different products and logistics contexts.	110 cm
Pallet width The horizontal measurement of a pallet, expressed in a linear unit such as millimetres or inches. It indicates how wide the pallet is from one side to the other and helps customers assess fit for storage, shipping, or display.	120 cm
Port mirroring Indicates whether the device supports port mirroring, a feature that allows one or more ports to copy traffic from another port for monitoring or analysis purposes.	Yes
Power connector The type of connector used to supply power to the device, such as AC‑in jack, DC‑in jack, USB Type‑C, SATA Power, or PCIe power connectors. It indicates the physical interface that delivers electrical energy to the product.	DC-in jack
Rack mounting Indicates whether a product is designed to be mounted in a rack system. The value can be "Yes" or "No", or it may specify the height occupied by the device using rack units (U) such as "1U", "2U", or a numeric measurement with unit, e.g., "61.25 mm".	Yes
Safety A list of safety and regulatory certifications that a product complies with, such as CE, UL, FCC, or other regional standards.	cUL, CB
SSH/SSL support Indicates whether the device can establish secure connections using SSH or SSL protocols, allowing encrypted remote management and data transfer.	Yes
Store-and-forward Gibt an, ob das Gerät Datenpakete zwischenspeichern kann, bevor es sie weiterleitet. Ein positives Ergebnis bedeutet, dass der Switch oder Router in der Lage ist, Pakete zu puffern und später auszuliefern, was die Netzwerkleistung verbessert, wenn Zielgeräte vorübergehend nicht erreichbar sind.	Yes
Switch type The classification of a network switch based on its management capabilities, such as Managed or Unmanaged. This attribute indicates whether the device can be configured and monitored remotely (Managed) or operates with fixed settings without remote configuration (Unmanaged). It helps users choose a switch that matches their networking expertise and control requirements.	Managed
Switching capacity The maximum data transfer rate that the device can handle, expressed as a numeric value with an appropriate unit such as Gbit/s or Mbit/s. This attribute indicates how quickly data can be transmitted through the device and helps users compare networking performance across products.	140 Gbit/s
VLAN support Indicates whether the device can configure and manage Virtual LANs (VLANs) for network segmentation and traffic isolation. A value of "Yes" means the product supports VLAN tagging, creation, and management; a value of "No" indicates it does not provide this capability.	Yes
Web-based management Indicates whether the product can be configured and monitored through a web interface accessible via a browser, allowing remote administration over a local or internet connection.	Yes
Weight The mass of the product expressed in a standard unit such as grams or kilograms. It represents how heavy the item is and can be used for shipping calculations, handling instructions, or consumer information.	2.4 kg
Width The horizontal measurement of a product, expressed in a linear unit such as millimetres or inches. It indicates how wide the item is from one side to the other and is used for sizing, fitting, and compatibility purposes.	440 mm
