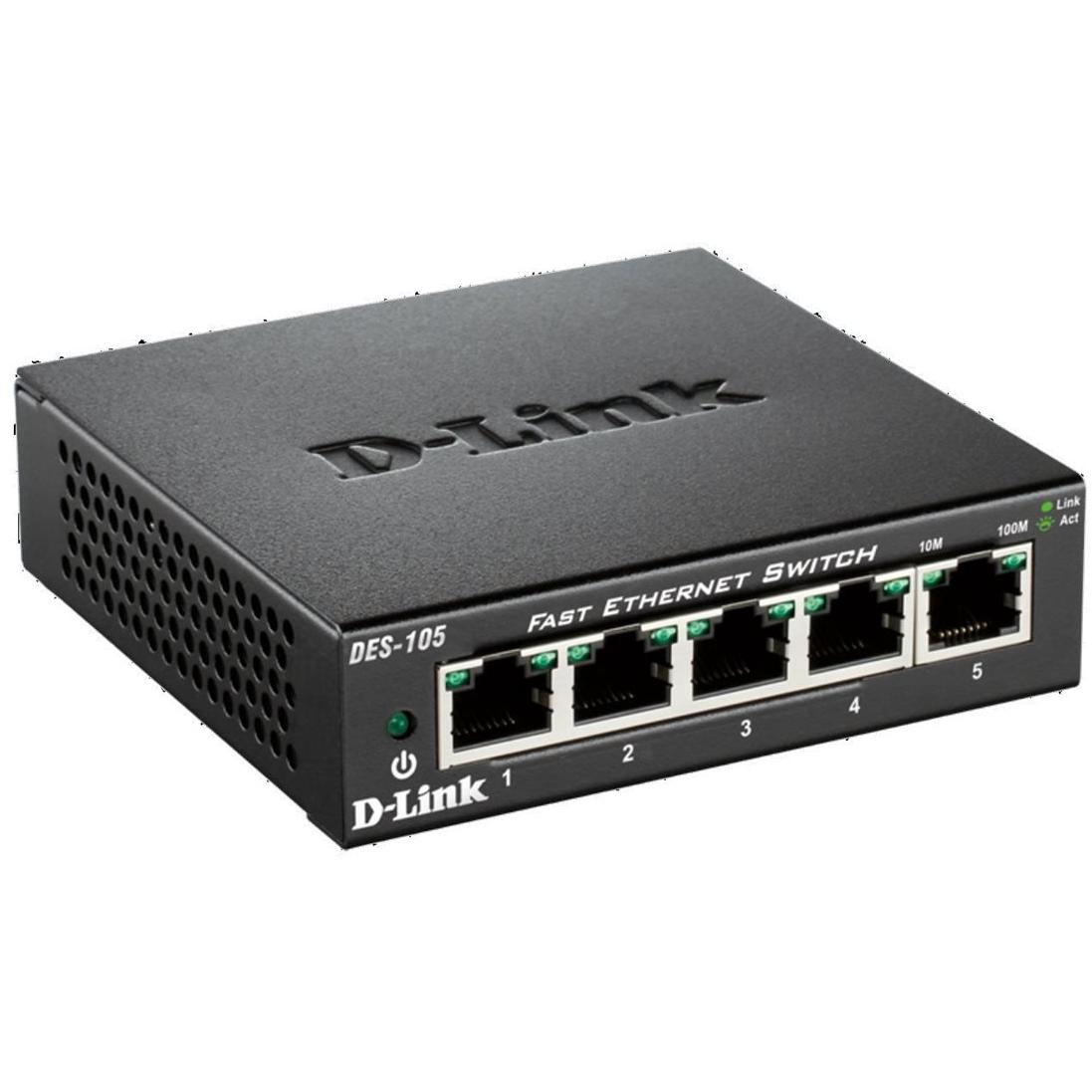

D-Link DES-105/B Metal Desktop Switch

Identifiers
Model	D-Link DES-105
MPN	D-Link DES-105/B
Dimensions / Weight
Key Features
Auto MDI/MDI-X Indicates whether the device can automatically detect and configure MDI or MDI‑X connections for network cables, simplifying cable management and reducing manual setup.	Yes
Basic switching RJ-45 Ethernet ports quantity Indicates the total count of physical RJ‑45 Ethernet connectors available on a device for wired network connectivity. The value is an integer representing how many separate ports can be used to connect Ethernet cables.	5
Certification A list of official certifications or compliance marks that the product has received from regulatory bodies, safety organizations, or industry standards groups. Each entry represents a distinct certification such as CE, FCC, RoHS, UL, or WEEE, and may include additional details like version numbers or specific test reports.	RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Connectivity technology The network and data interface technologies supported by the product, such as Wired, Wireless, USB, Bluetooth, or combinations thereof. Each value represents a distinct technology that can be used for communication or power delivery.	Wired
Copper ethernet cabling technology A comma‑separated list of the copper Ethernet standards supported by a device, such as 10BASE‑T, 100BASE‑TX, or 1000BASE‑T. Each entry indicates a specific speed and physical specification that the product can transmit over its RJ‑45 ports.	100BASE-TX,10BASE-T
Data transfer rate The maximum theoretical speed at which a device can send or receive data, expressed in bits per second (bps) or its multiples such as kbps, mbps, gbps, etc. It represents the upper bound of throughput under optimal conditions and is useful for comparing performance across devices and interfaces.	200 Mbit/s
Depth The linear measurement of an object from front to back or top to bottom, expressed in a physical unit such as millimeters, centimeters, inches, etc. It indicates how deep the item is and can be used for fitting, compatibility, or spatial planning.	98 mm
Flow control support Indicates whether a device includes hardware or firmware that can manage the flow of data on its interfaces, such as enabling or disabling automatic pause frames, handling congestion, or providing other traffic‑control mechanisms. A value of "Yes" means the feature is present and can be configured; "No" indicates it is not available.	Yes
Full Duplex Indicates whether a device can transmit and receive data simultaneously on two channels, allowing bidirectional communication without delay. A value of "Yes" means the device supports full‑duplex operation; a value of "No" indicates it operates only in half‑duplex mode.	Yes
Height The vertical dimension of a product measured from its lowest to highest point. It is expressed in a physical unit such as millimetres, centimetres or inches and applies to any item where height is relevant, including books, electronics, furniture and other objects.	28 mm
Housing material Indica el material o la combinación de materiales con los que está fabricado el componente más importante de un producto, como metal, plástico, vidrio u otros compuestos. Este atributo ayuda a comprender la durabilidad, peso y estética del artículo.	Metal
Input current The electrical current that a device draws from its power source, expressed in amperes (A). It indicates how much current the product consumes during normal operation and helps determine compatibility with power supplies or USB ports.	1 A
Jumbo frames support	Yes
LED indicators A list of the functions or statuses that an LED indicator on a device can display, such as power status, activity, link, and other operational signals.	Link,Power,Y
MAC address filtering Indicates whether the device supports filtering network traffic based on MAC addresses. When enabled, the device can allow or block communication for specific devices identified by their MAC address.	Yes
MAC address table The total count of unique MAC addresses that the device can store in its forwarding table. This value indicates how many devices can be simultaneously connected before the switch must start discarding or aging out older entries.	2000 entries
Maximum data transfer rate The highest theoretical speed at which a device can send or receive data, expressed in bits per second (bps) or its multiples such as kbps, mbps, gbps, etc. This value represents the upper bound of throughput under optimal conditions and is useful for comparing performance across devices and interfaces.	0.1 Gbit/s
Networking standards A list of the networking protocols and standards that a device can support or comply with, such as IEEE 802.11 variants for wireless, IEEE 802.3 for Ethernet, or other relevant networking specifications. The values are typically separated by commas and may include both technical identifiers and consumer‑friendly labels.	IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Packet buffer memory The amount of temporary storage that a device allocates in its internal memory for buffering data before processing or forwarding it. Expressed as a digital capacity (e.g., kilobytes, megabytes), this value indicates how much information the hardware can hold at once and influences performance when handling high‑throughput or bursty traffic.	0.384 MB
Power connector The type of connector used to supply power to the device, such as AC‑in jack, DC‑in jack, USB Type‑C, SATA Power, or PCIe power connectors. It indicates the physical interface that delivers electrical energy to the product.	DC-in jack
Rack mounting Indicates whether a product is designed to be mounted in a rack system. The value is typically "Yes" or "No", but may also include a measurement such as "1U" or "2U" to specify the height occupied by the device.	No
Store-and-forward Indicates whether the device can temporarily store data packets before forwarding them, allowing traffic management even when the destination is not immediately available. A positive value means the device can buffer and later deliver packets reliably.	Yes
Supported data transfer rates	10/100 Mbps
Switch type The classification of a network switch based on its management capabilities, such as Managed or Unmanaged. This attribute indicates whether the device can be configured and monitored remotely (Managed) or operates with fixed settings without remote configuration (Unmanaged). It helps users choose a switch that matches their networking expertise and control requirements.	Unmanaged
Weight The mass of the product expressed in a standard unit such as grams or kilograms. It represents how heavy the item is and can be used for shipping calculations, handling instructions, or consumer information.	265 g
Width The horizontal measurement of a product, expressed in a linear unit such as millimetres or inches. It indicates how wide the item is from one side to the other and is used for sizing, fitting, and compatibility purposes.	100 mm

D-Link is a Taiwanese networking equipment manufacturer that produces a wide range of products for the consumer, small business, and enterprise markets. Some of their most popular products include wireless routers, switches, and network attached storage devices. D-Link has a strong reputation for quality and reliability, and their products are often praised for their feature-richness and ease of use.
